SAIC Export Model photometric lens mold

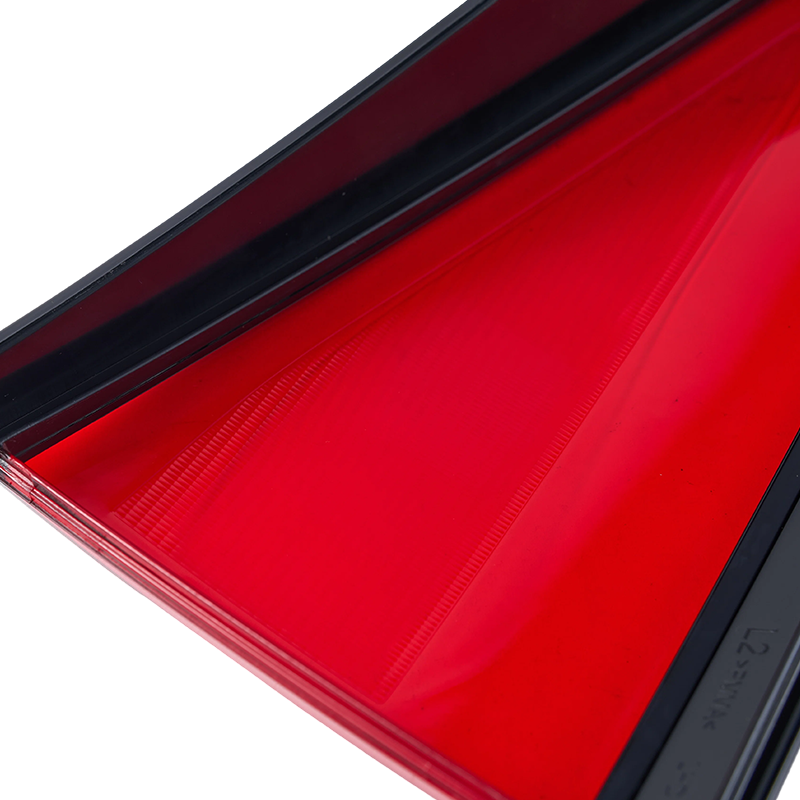

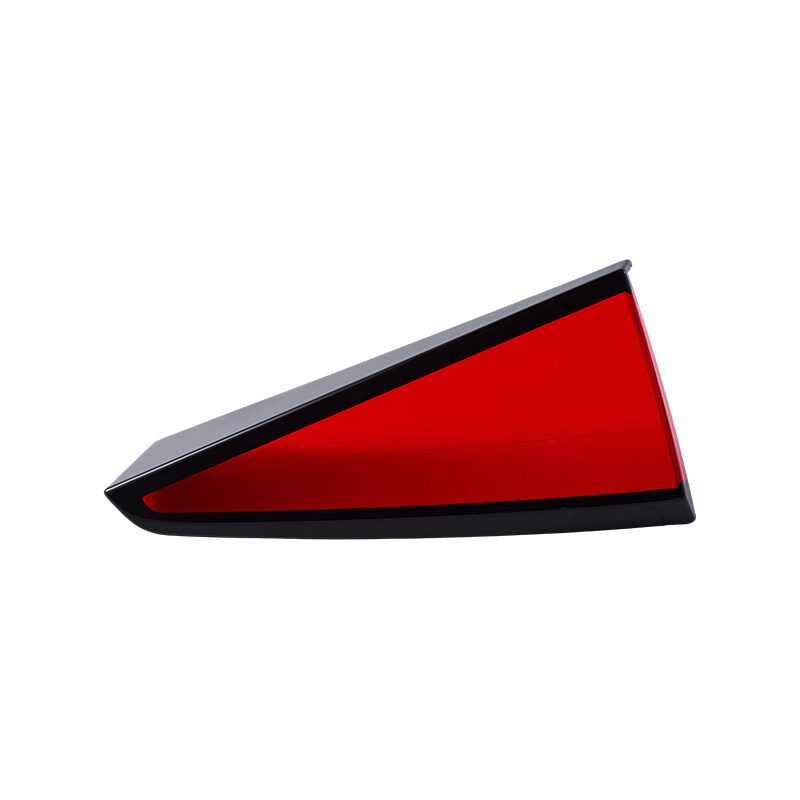

SAIC Export Model Tail Lamp Photometric Lens

Material: PMMA
Mold Type: Two-Color
Mold Steel: 2343
Key Requirement: Stable two-shot molding with a high-gloss mirror-like surface finish.
Mold Life: 500,000+ Shots
DFM Review: 7 Days
Mold Design: 7 Days After Data Freeze
Mold Manufacturing: 60 Days After Material Preparation Instruction Issued
T0 Trial: Based on Mold Complexity
Modification & Validation: According to Trial Results
Shipment: After Sample Approval
Reports: DFM, Mold Flow, CMM, Trial Report
Application: Tier 1 Supplier, SAIC

  • Challenge and Solution
  • Challenge:
    The main challenge was to ensure stable two-shot molding while achieving a high-gloss mirror-like surface finish on PMMA optical components. The process required precise control of material compatibility between two injection stages to avoid defects such as delamination, flow marks, weld lines, and uneven gloss. In addition, the optical surface demanded strict control of transparency, surface uniformity, and dimensional accuracy to ensure consistent light transmission performance.

    Solution:
    We optimized the two-shot molding sequence by carefully controlling injection timing, bonding interface design, and material flow balance. High-precision machining and polishing were applied to ensure a defect-free mirror-like surface on the optical area. The mold cooling system and gate layout were optimized to stabilize temperature distribution and reduce internal stress. During mold trials, injection parameters such as melt temperature, mold temperature, injection speed, holding pressure, and cooling time were finely adjusted to achieve stable bonding, high optical clarity, and consistent surface quality.

  • Why Choose Us
  • Why Choose Renxin for SAIC Export Model Tail Lamp Photometric Lens

    ● Experience in automotive lighting mold development since 2013
    ● Support for DFM, mold flow analysis, optical simulation and trial validation
    ● Suitable for OEM, Tier-1, and customized automotive lighting projects
    ● Precision machining, polishing, fitting and inspection capabilities
    ● Project management from design review to sample approval
  • Send Your Drawing for Free DFM Review
  • Share your 2D/3D drawing, material requirements, annual volume and project timeline. Our engineering team will review the manufacturability and provide mold solution suggestions.
