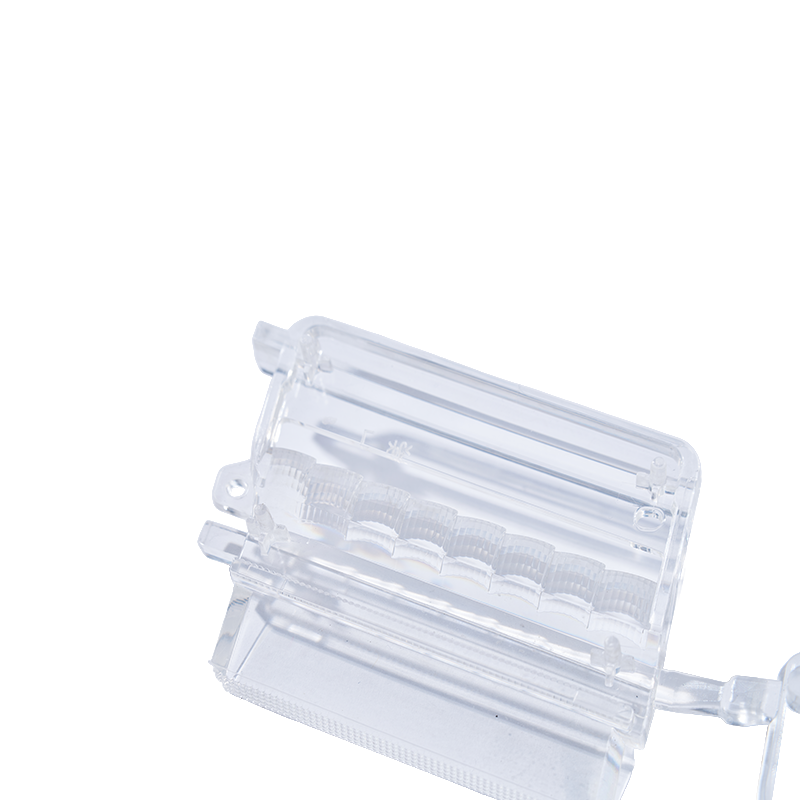

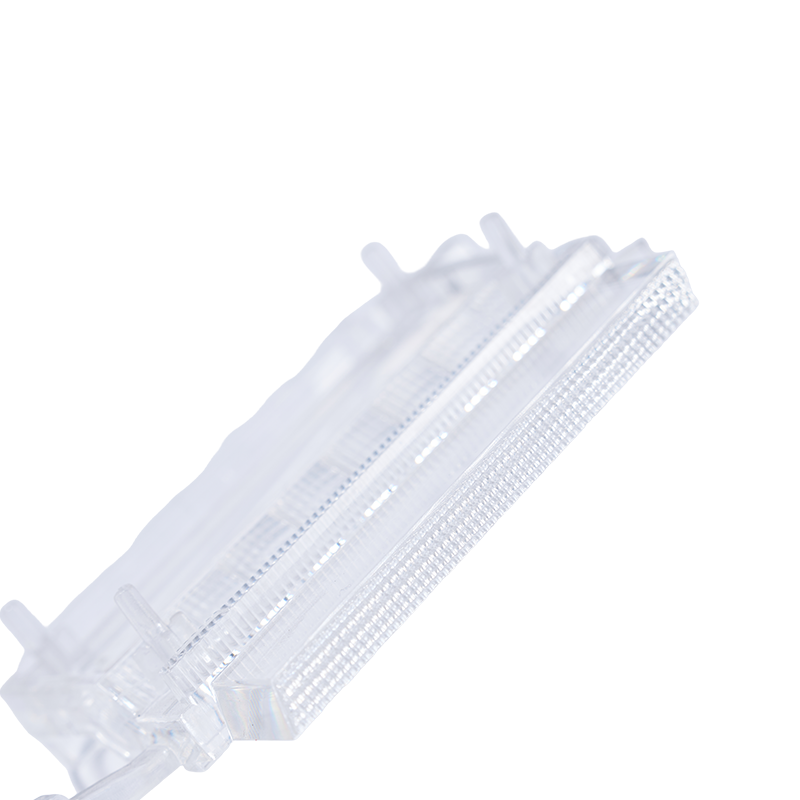

Chery T1P Tail Lamp Thick-Wall Mold

  • Chery T1P Tail Lamp Thick-Wall Mold
  • Chery T1P Tail Lamp Thick-Wall Mold
  • Chery T1P Tail Lamp Thick-Wall Mold

Chery T1P Tail Lamp Thick-Wall Mold

Product Type:

Taillights Mold

/

Car Light Thick-Walled Mold

Mold Type:

Optical Component Mold

Mold Type: Optical Component Mold
Part Material: PC2245
Mold Steel: 2343
Key Requirement: High machining accuracy for patterned features, with corner radius of R0.15 mm. Gate Position Layout
Mold Life: 500,000+ Shots
DFM Review: 3 Days
Mold Design: 7 Days After Data Freeze
Mold Manufacturing: 40 Days After Material Preparation Instruction Issued
T0 Trial: Based on Mold Complexity
Modification & Validation: According to Trial Result
Shipment: After Sample Approval
Reports: DFM, Mold Flow, CMM, Trial Report
Application: Tier 1 Supplier, Chery

CONTACT US
PREV：Chery Tail Lamp Thick-Wall MoldNEXT：Chery Automotive Tail Lamp Thick-Wall Mold
  • Challenge and Solutlon

  • Challenge:
    The patterned features required high precision, with strict requirements for fine details and surface quality.

    Solution:
    We ensured accurate precision finishing and strict machining control, allowing the final part to meet the customer's dimensional and appearance requirements. We optimized the gate position layout to improve material flow and filling balance. This helped reduce warpage, weld lines, and visible molding defects, ensuring stable molding and a qualified part appearance.

  • Why Choose Us
  • Why Choose Renxin for Chery T1P Tail Lamp Thick-Wall Mold Mold

    ● ‌Experience in automotive lighting mold development since 2013
    ● ‌Support for DFM, mold flow analysis, optical simulation and trial validation
    ● ‌Suitable for OEM, Tier-1, and customized automotive lighting projects
    ● ‌Precision machining, polishing, fitting and inspection capabilities
    ● ‌Project management from design review to sample approval
  • Send Your Drawing for Free DFM Review

  • Share your 2D/3D drawing, material requirements, annual volume and project timeline. Our engineering team will review the manufacturability and provide mold solution suggestions.
