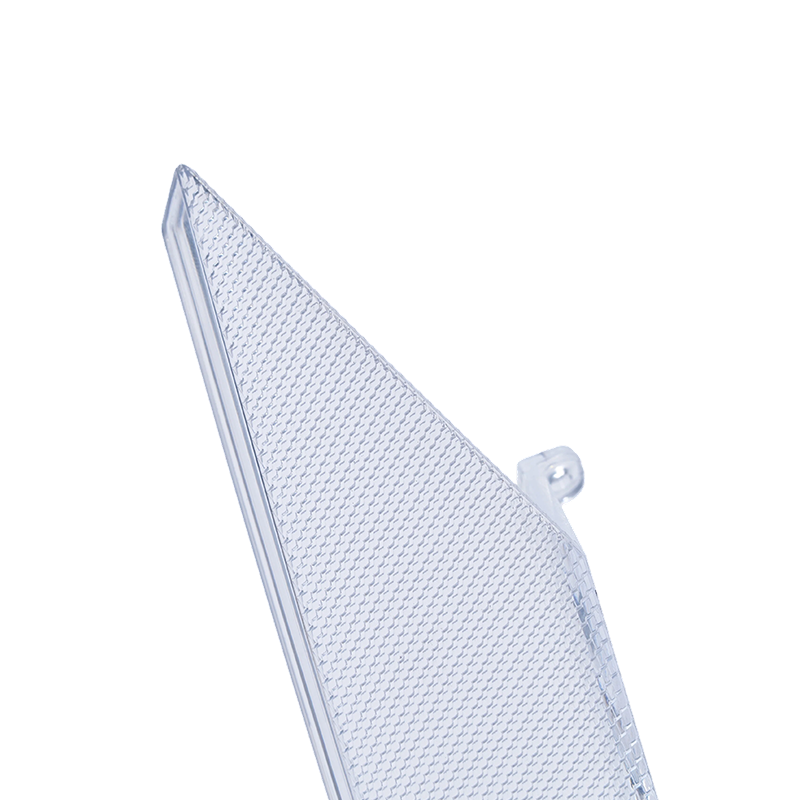

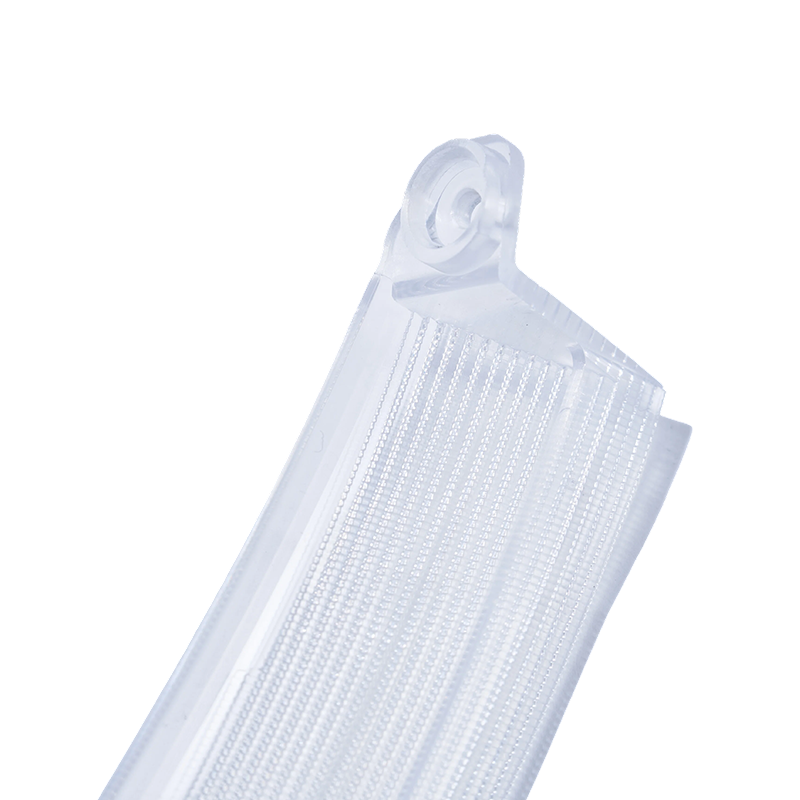

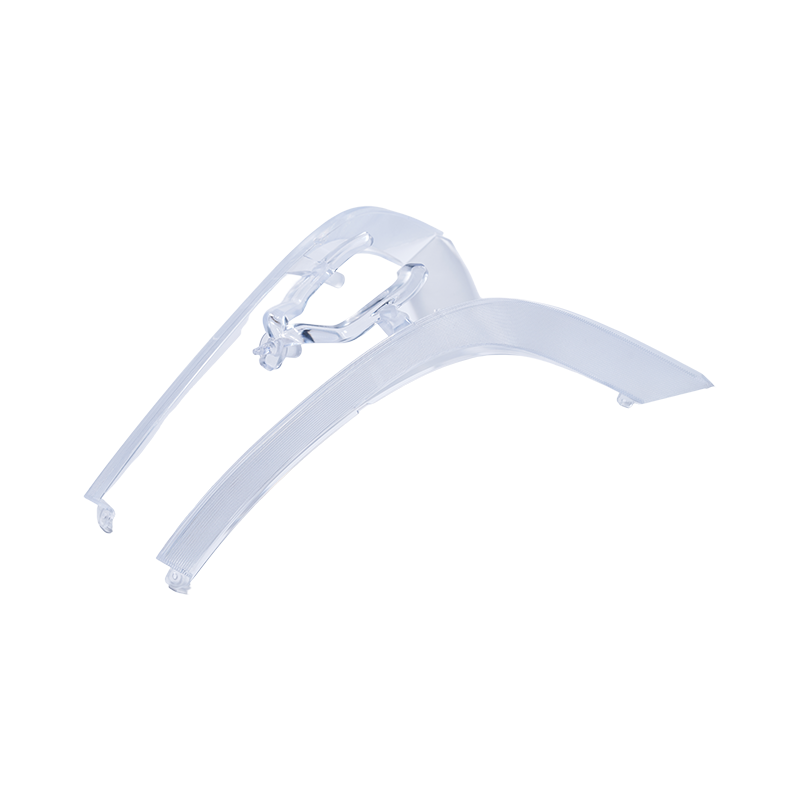

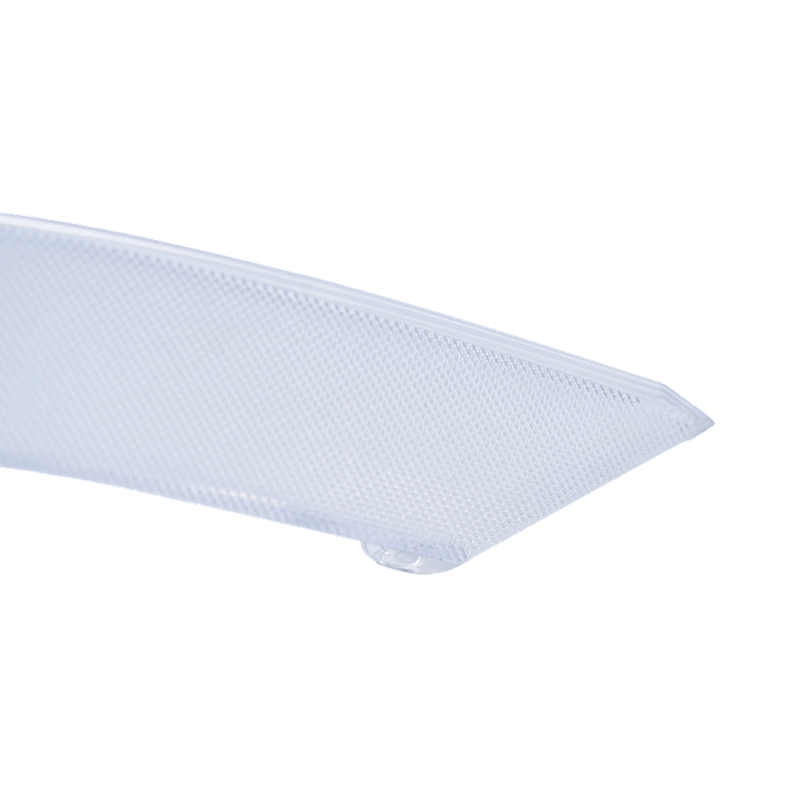

GAC AION UT inner lens mold

GAC AION UT Automotive Headlamp Inner Lens Mold

Part Material: PC2245
Mold Steel: 2343
Key Requirement: A high surface finish was required, especially for the patterned area with an R0.1 mm corner radius.
Mold Life: 500,000+ Shots
DFM Review: 7 Days
Mold Design: 7 Days After Data Freeze
Mold Manufacturing: 50 Days After Material Preparation Approval
T0 Trial: Based on Mold Complexity
Modification & Validation: According to Trial Results
Shipment: After Sample Approval
Reports: DFM, Mold Flow, CMM, Trial Report
Application: Tier 1 Supplier, GAC

  • Challenge and Solution
  • Challenge:
    The key challenge was to achieve a high surface finish while accurately machining the fine patterned details with an R0.1 mm corner radius.

    Solution:
    Renxin optimized the machining process, tool path, and finishing method to ensure the R0.1 mm pattern details were accurately formed and the surface finish met the customer's appearance and precision requirements.

  • Why Choose Us
  • Why Choose Renxin for GAC AION UT Automotive Headlamp Inner Lens Mold

    ● Experience in automotive lighting mold development since 2013
    ● Support for DFM, mold flow analysis, optical simulation and trial validation
    ● Suitable for OEM, Tier-1, and customized automotive lighting projects
    ● Precision machining, polishing, fitting and inspection capabilities
    ● Project management from design review to sample approval
